Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity
Szczegóły Produktu:
| Miejsce pochodzenia: | Guangdong, Chiny |
| Nazwa handlowa: | JINTONG |
| Numer modelu: | JTT-1200R |
Zapłata:
| Minimalne zamówienie: | 1 kawałek |
|---|---|
| Cena: | $32,000-40,000 / piece |
|
Szczegóły informacji |
|||
| Plastik przetworzony: | PP, ABS | Zdolność plastyfikująca: | 250 g/s |
|---|---|---|---|
| Wysokość formy: | 150 - 520 mm | Numer wyrzutnika: | 2 |
| Udar wyrzutowy: | 75 mm | Siła wyrzutnika: | 27 kN |
| Objętość strzału: | 410 cm3 | Wskaźnik wtrysku: | 202 g/s |
| Waga wtrysku: | 369 gr | Prędkość śruby: | 1 - 220 obr./min |
| Średnica śruby: | 50 mm | Śruby L/D: | 25 |
| Odległość baru: | 620 mm | Waga maszyny: | 5500 kg |
| Moc: | 24,5kw | ||
| Podkreślić: | 2 Stations Vertical Injection Molding Machine,3 Stations Rotary Table Injection Molding Machine,250g/s Plasticizing Capacity Injection Molding Machine |
||
opis produktu
Rotary Table Vertical Plastic Injection Molding Machine 120T

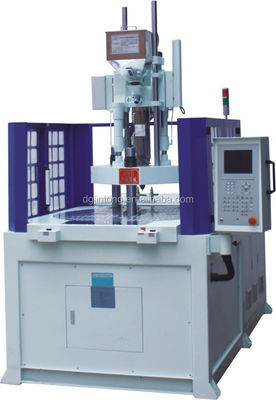

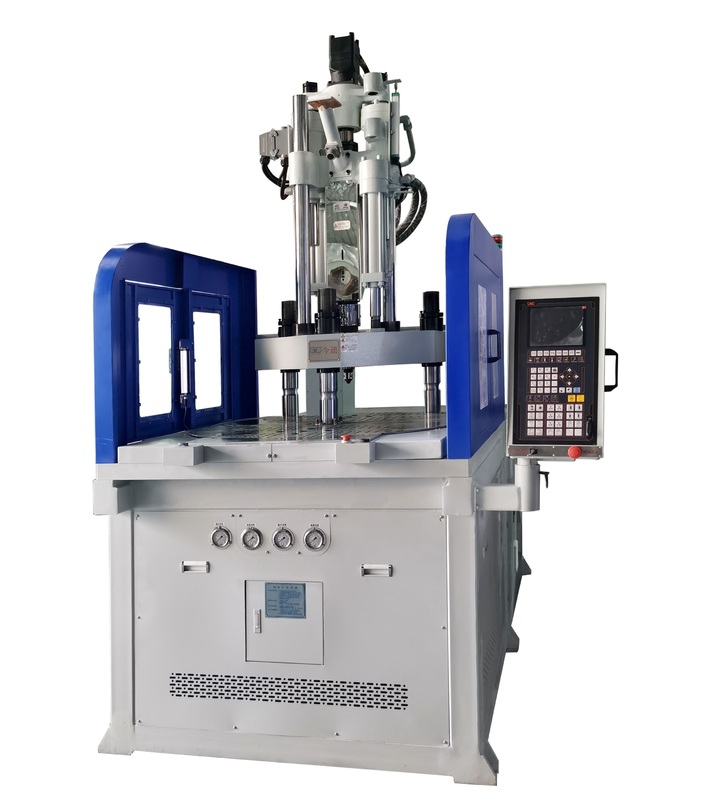

Rotary table vertical injection molding machine JTT-1200R
| Clamping Force | 120T |
| Injection Weight | 237-369g |
Vertical clamping, vertical injection. Easy to set torque, speed, deceleration distance and stand number segmentation. Computer program control for rotary table direction including forward-rotating, reverse-rotating, and forward/reverse alternative rotating. Optional energy-saving motor available.
Main Features
- Vertical clamping and vertical injection design
- Adjustable clamping force, injection weight and shot speed to meet production requirements
- Available in 2-station, 3-station or multi-station configurations (one up die, two or four down die)
- Optimized for operating insert parts and improving productivity
Product Advantages
- Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
- High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
- Low heating: Reduces cooling water quantity by at least 55% compared to similar models
- Low noise: Optimized motor operation with imported bearing and oil pump reduces working noise by 15-20db
- Precision: Fully closed-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantage
With 17 years of customer service experience, we've developed a systematic and standardized service process. Our 24-hour response mechanism ensures timely resolution of customer issues and delivery of excellent service.
Packing & Delivery
