Rotary Table Vertical Injection Molding Machine with 250T Clamping Force 929 cm³ Theoretical Shot Volume and 285 g/s Injection Rate
Szczegóły Produktu:
| Miejsce pochodzenia: | Guangdong, Chiny |
| Nazwa handlowa: | JINTONG |
| Numer modelu: | JTT-2500R |
Zapłata:
| Minimalne zamówienie: | 1 kawałek |
|---|---|
| Cena: | $65,600-67,650 / piece |
|
Szczegóły informacji |
|||
| Siła zacisku: | 250t | Maksymalny wtrysk: | 836G |
|---|---|---|---|
| Średnica śruby: | 55 60 65 mm | Ciśnienie wtrysku: | 2087 1754 1494 kg/cm2 |
| Teoretyczna objętość strzału: | 929 cm3 | Wskaźnik wtrysku: | 285 cm3/s |
| Skok śruby: | 280 mm | Prędkość śruby: | 152 RPM |
| Pojemność ogrzewania: | 20 kW | Siła otwarcia: | 26,4 tony |
| Min Wysokość pleśni: | 300 mm | Skok otwarcia: | 450 mm |
| maksymalnie otwarte światło dzienne: | 750 mm | Średnica stołu obrotowego: | 1800 mm |
| Siła wyrzutnika: | 4.6 ton | ||
| Podkreślić: | 250T Clamping Force Vertical Injection Molding Machine,929 cm³ Theoretical Shot Volume Rotary Table Vertical Injection Molding Machine,285 g/s Injection Rate Vertical Plastic Injection Molding Machine |
||
opis produktu
Vertical Rotary Injection Molding Machine JTT-2500R
Clamping Force: 250T
Max Injection Weight: 836g
Vertical clamping and injection system with servo motor controlled rotary table. Features forward-rotating, reverse-rotating, and forward/reverse alternative rotating modes. Available in 2 stations, 3 stations, or multi-station configurations (one upper die with two or four lower dies) for efficient insert part operation and enhanced productivity.
Technical Specifications
| Model: JTT-2500R | ||
|---|---|---|
| Injection System | ||
| Screw Diameter | mm | 55 | 60 | 65 |
| Injection Pressure | kg/cm² | 2087 | 1754 | 1494 |
| Theoretical Shot Volume | cm³ | 665 | 792 | 929 |
| Max Shot Weight | g | 599 | 713 | 836 |
| Injection Rate | cm³/sec | 202 | 243 | 285 |
| Screw Stroke | mm | 280 |
| Screw Speed | rpm | 152 |
| Heating Capacity | kw | 20 |
| Clamping System | ||
| Clamping Force | tons | 250 |
| Opening Force | tons | 26.4 |
| Min Mold Height | mm | 300 |
| Opening Stroke | mm | 450 |
| Max Open Daylight | mm | 750 |
| Mold Dimension | mm | 850×450 |
| Rotary Table Diameter | mm | 1800 |
| Ejector Force | tons | 4.6 |
| Ejector Stroke | mm | 100 |
| Other Specifications | ||
| Motor Power | kw | 33.8 |
| Machine Dimension | m | 3.8×2.55×4.12 |
| Machine Weight | tons | 13.6 |
Main Features
- Vertical clamping and vertical injection system
- Adjustable clamping force, injection weight, and shot speed to meet production requirements
- Multiple station configurations (2, 3, or multi-station) with one upper die and multiple lower dies for efficient insert part operation

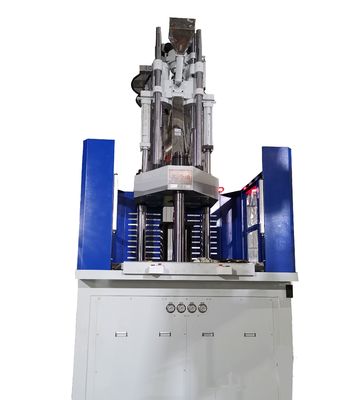

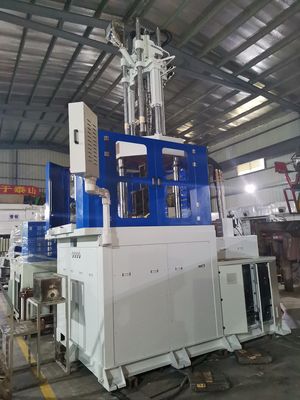

Product Images
Product Advantages
Energy-saving: 30% more efficient than similar products using SIFU pump system
High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
Low heating: Saves at least 55% cooling water compared to similar products
Low noise: Optimized motor operation with imported bearing and oil pump reduces noise by 15-20db
Precision: Complete closed-cycle control with pressure sensor and motor rotary encoder ensures product consistency
Service Advantage
With 17 years of customer service experience, we've developed a systematic and standardized service process. Our 24-hour response mechanism ensures timely resolution of customer issues and delivery of excellent service.
